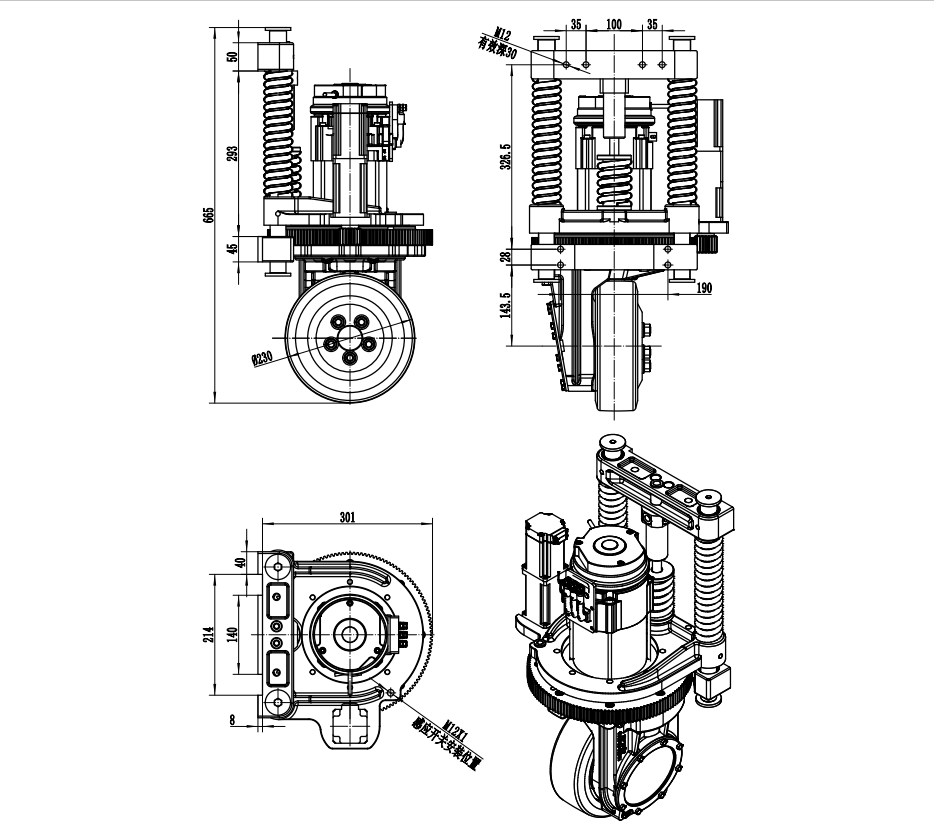

Floating device HL230

Product description


Model number

HL230-AC1600-24-22B

travel motor

motor type

AC induction motor

Motor power       kW

1.6

voltage        V①

48

Rated current       A

47

Rated torque     Nm

5.66

Rated speed      r/min

3250

Speed fbk sel

Incremental encoder

Gearbox

Reducer type

Secondary  gear reduction

Reduction ratio

22.07:1

Brake

Brake torque   Nm

16

Rated voltage    V

DC24

Tyre

Wheel material

Polyurethan/Solid rubber

Wheel size

φ230X75

Steering part

motor type

permanent magnet synchronous servo motor

Motor power       kW

0.4

voltage        V①

48

Rated current       A

10.1

Rated torque     Nm

1.27

Rated speed      r/min

3000

Reducer type

Secondary planetary gear reduction

Reduction ratio

200:1

Speed fbk sel

Absolute encoder

Other

Steering limit angle°

±110°

Travel speed  m/min

0-105

Rated traction   N

1000

Carrying capacity  Kg

1200

net weight         Kg

90
