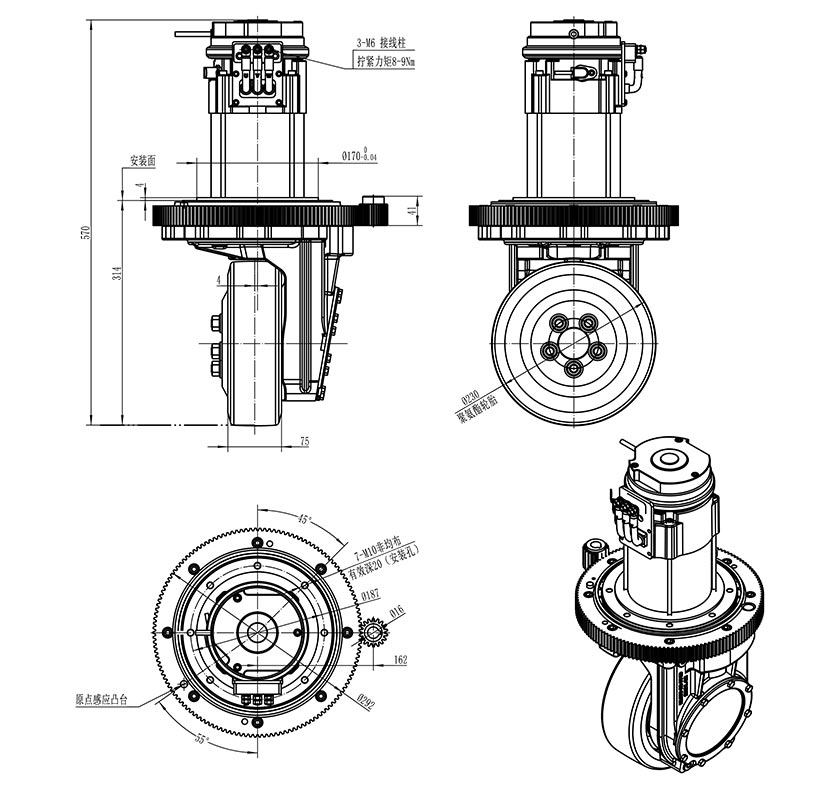

HL230 helm wheel

Product description


Model number

HL230-AC1600-24-22B

travel motor

motor type

AC induction motor

Motor power       kW

1.6

voltage        V①

24

Rated current       A

78

Rated torque     Nm

5.66

Rated speed      r/min

3000

Speed fbk sel

Pulse type

Gearbox

Reducer type

Secondary  gear reduction

Reduction ratio

22.07:1

Brake

Brake torque   Nm

16

Rated voltage    V

DC24

Tyre

Wheel material

Polyurethan/Solid rubber

Wheel size

φ230X75

Other

Steering limit angle°

±110°

Travel speed  m/min

0-100

Rated traction   N

1000

Maximum tractive force N

   N

2500

Carrying capacity  Kg

1200

net weight         Kg

23

※Voltage optionalDC48V

※peed ratio optional 14.5   16.7   22.07    27.31

※Motor power is optional2.2Kw
